Pad printing process, which is one of the special printing methods, can print text, graphics and images on the surface of irregular objects, and has now become an important special printing process. The process is to print the required pattern is first made of steel plate (or copper, thermoplastic) gravure plate by the way of film etching, and then the curved pad printing head made of silicone rubber material, the ink on the gravure plate is dipped into the surface of the pad printing head, and then the surface of the required object can be pressed to print the text, pattern, etc.

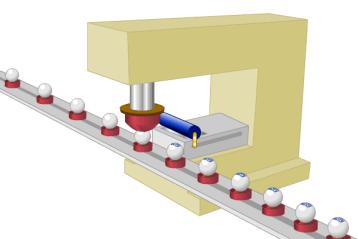

Pic.1 Pad printing production process

Pad printing process has the advantages of low cost, wide application range, easy mass production, clear printing, high quality, fast speed and so on. One of the important factors affecting the effect of pad printing is pad printing head, at present, pad printing head is usually made of liquid silicone rubber, this kind of silicone rubber is called pad printing silicone, its characteristics are: good deinking effect, glial delicate, good resilience, pad printing times, pad printing pattern clear, low viscosity, good fluidity, small shrinkage, good oil, pad printing pattern clear. Pad printing silicone can be used to make a variety of pad printing adhesive heads, mainly used for plastic toys, electroplating products, electronic toys, trademarks, communication equipment, craft gifts and stationery and other irregular pattern printing.

The pad printing silica gel developed by Genvan silicone has been widely recognized by our customers. The product series model is GA-2135-**, which has excellent mechanical properties, excellent pressure denaturation and defoamability, excellent fluidity, can be vulcanized at room temperature, and can be accelerated by heating. According to the different needs of the application to match different hardness, there are five conventional models in this series, respectively, GA-2135-15, GA-2153-25, GA-2135-28, GA-2135-35, GA-2135-45, corresponding to Shore A hardness from 15-50A, low viscosity, good fluidity, It can be used to prepare various complex shapes of glue heads. This series of liquid silicone rubber also has an antistatic effect, and the surface resistance is 109-1011Ω, which can ensure that the adhesive head is clean and the pad printing pattern is accurate. Typical data are shown in the following table.

Table 1. Typical date of GA-2135 series pad printing liquid silicone rubber

Product code	GA-2135-15	GA-2135-25	GA-2135-35	GA-2135-45
Appearance	Transparency
Viscosity(Pa.s)	60	30	38	30
Hardness(Shore)	18	26	35	48
Density(g/cm3)	1.03	1.06	1.06	1.10
Tensile strength(Mpa)	2.5	2.8	4.2	5.5
Elongation(%)	400	380	330	250
Tear strength(KN/m)	8	9.5	11.5	16

In order to meet the other special needs of customers, Genvan can also customize the performance of the glue.
