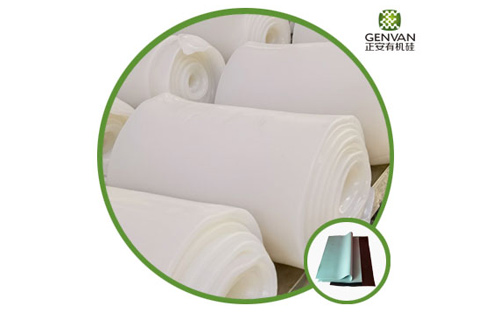

GA-91*1 and GA-91*0 series antistatic rubbers have good antistatic effects, odorless, yellowing change small after post-cure. Product contact with food needs to do the two-process treatment at 200℃ 4hours.
Features of Antistatic Silicone Rubber (Precipitated/Fumed)
Good antistatic effect
Odorless
Good anti-yellowing property
Application: Rubber roll, Electric product sheath
Differences of Antistatic Silicone Rubber (Precipitated/Fumed)
- GA-91*1 Series Heat Cure Rubber
- GA-91*0 Series Heat Cure Rubber
Typical characteristics
Product code | GA-9131 | GA-9141 | GA-9151 | GA-9161 | GA-9171 |
Appearance | Transparent | ||||
William plasticity | 120 | 140 | 200 | 240 | 270 |
Hardness(ShoreA) | 30 | 40 | 50 | 60 | 70 |
Density(g/cm³) | 1.11 | 1.14 | 1.17 | 1.18 | 1.19 |
Tensile strength(Mpa) | 7.0 | 8.0 | 8.5 | 8.5 | 8.0 |
Elongation(%) | 700 | 600 | 550 | 500 | 450 |
Tear strength(KN/m) | 15 | 18 | 20 | 20 | 25 |
Surface resistance(Ω) | 1011 | ||||
Typical characteristics
Product code | GA-9130 | GA-9140 | GA-9150 | GA-9160 | GA-9170 |
Appearance | Transparent | ||||
William plasticity | 150 | 190 | 250 | 280 | 300 |
Hardness(ShoreA) | 30 | 40 | 50 | 60 | 70 |
Density(g/cm³) | 1.11 | 1.14 | 1.17 | 1.20 | 1.21 |
Tensile strength(Mpa) | 8.0 | 9.5 | 10.0 | 9.0 | 8.5 |
Elongation(%) | 900 | 700 | 600 | 500 | 400 |
Tear strength(KN/m) | 17 | 20 | 25 | 25 | 25 |
Surface resistance(Ω) | 1011 | ||||
-
