Name: GA-23 Series Liquid Silicone Rubber
Brand: Dongguan Genvan Silicone Technology Co., Ltd.

Features of GA-23 Series Liquid Silicone Rubber

GA-23 Series Liquid Silicone Rubber

Features
High Strength
Fast Curing Speed
Multiple Mold Reproductions
Dimensional Stability

Application

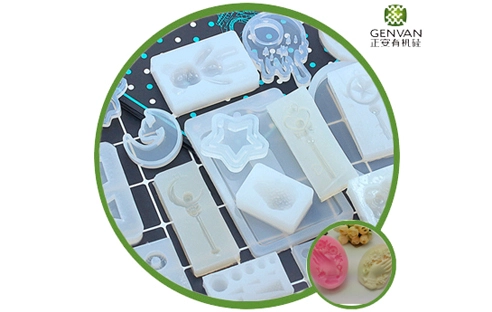

Pouring molds for handicrafts, etc

Typical data

trademark	GA-2340	GA-2341
appearance	semitransparent
Ratio	A:B=10：1	A:B=1：1
Viscosity (Pa.s)	50/1	75/75
Hardness (Shore A)	38	38
Density (g/cm3)	1.08	1.08
Tensile Strength (MPa)	6.5	6.5
Elongation (%)	400	400
Tear Strength (KN/m)	18	18

Note: 1. Primary vulcanization conditions: vulcanization at 130 °C for 5 minutes.

2. The above data is for reference only.

Curing

GA-23 series liquid silicone rubber cures quickly in high temperature environments. The curing time depends on the thickness and the curing temperature used. Contact with certain materials, such as amines, sulfur, and tin compounds, can inhibit curing.

stockpile

The product should be kept at 32°C or lower in its original, unopened container. The storage period of this product is 9 months, and it can still be used after passing the re-inspection.

Available time

After mixing components A and B, the mixture has an expiration date of 48 hours at 25°C.

Application Method:

Mix and remove the air

Components A and B are supplied with filtered air and used as matching lot numbers. Mix components A and B in a 1:1 ratio. It is highly recommended to use metering and mixing equipment that conveys, meteres and mixes both components and does not penetrate into the air. If air bubbles are trapped during the mixing process, the air must be completely removed by means of a vacuum device.

clean

Most hydrocarbon solvents remove uncured silicon. Polar solvents such as ketones and ethanol cannot be removed.

wrap

55 gallon steel drum (200kg net) or 20L plastic straight drum (20kg net)

Instructions for industrial use

The user is obliged to understand the scope of application and the purpose of use of the products to be used.Do not use Zheng'an products for transplantation or injection into the human body.

The test report of our goods is only the test obtained by the laboratory of Zhengan Company according to the testing method of Zhengan Company, and it cannot be used as the standard of Zhengan Company's liquid silicone rubber products, and cannot be used as the basis for customers to accept Zheng'an Company's products.

Due to the different testing and production conditions, we cannot guarantee that we can get the same test results, and it is recommended that users use the test data under their own testing conditions as a reference for the use of performance.

Any of the above performance data and applicable suggestions are only a reference for the performance of Zhengan products, and are not a guarantee of the effectiveness or generality of Zhengan products in specific applications.

We reserve the right to change the product parameters without prior notice.
