General Purpose Silicone Rubber For Molding (Precipitated/Fumed)

An ideal solution for customers who need the technical advantages of silicone, but do not demand specific performance criteria.

A very capable all-around material with good physical and mechanical properties, high and low-temperature resistance, aging resistance, and prolonged use at temperatures from –60c to 200c.

Typically, these materials can be used for compression molded and extruded products. A post-cure is recommended to enhance physical properties. Contact us for this all-around material and we also offer other high temperature vulcanized silicone rubber such as high tear strength silicone rubber and clear liquid silicone.

Contact us

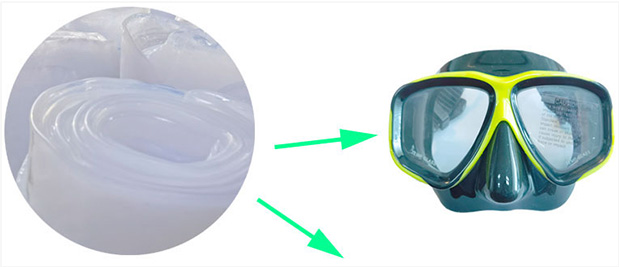

Features of General Purpose Silicone Rubber for Molding (Precipitated/ Fumed)

Features of General Purpose Silicone  Rubber for Molding (Precipitated/ Fumed)
  • Good resilience in moulding silicone

  • Excellent processing performance among general purpose silicone for molds

  • Passed ROHS, REACH and FDA test of all general purpose silicone rubbers

  • Applicable to the production of common buttons, seals, and other conventional strength products

Differences between Precipitated Silicone Rubber and Fumed Silicone Rubber

  • GA-11*3 Series (Precipitated)
  • GA-32*0 Series (Fumed)
Brand Name:GenvanHardness:30-80(Shorea)
Country of Origin:Guangdong, ChinaChina Certificate:ISO9001
Processing method:MoldingPackage:20kg/Carton
Transport Details:By seaDelivery time:within 3-7days

Application: ordinary buttons, seals, and other conventional strength products.

Key Features: good resilience, excellent processability, pass ROHS, REACH, FDA.

Test: 50%DBPMH, add1%, 175℃×5min×15Mpa.

Typical Characteristics of GA-11*3 Series  (Precipitated)

Product code

GA-1133

GA-1143

GA-1153

GA-1163

GA-1173

GA-1183

Appearance

Transparent

Hardness (Shore A)

30

40

50

60

70

80

William plasticity

115

150

205

240

280

310

Density (g/cm³)

1.10

1.12

1.16

1.19

1.22

1.22

Tensile strength (Mpa)

7

7.5

9

8

8

7

Elongation at break (%)

700

500

450

400

300

200

Tear strength (kN/m)

16

20

20

20

20

16


Brand Name:GenvanHardness:30-80(Shorea)
Country of Origin:Guangdong, ChinaCertificate:ISO9001
Processing method:MoldingPackage:20kg/Carton
Transport Details:By seaDelivery time:within 3-7days

Application: all kinds of sheath, kitchenware, purse, watchband, and other conventional products.

Key Features: fast curing, high strength, excellent processability, pass ROHS, REACH, LFGB.

Test: 50%DBPMH, add1%, 175℃×5min×15Mpa.

Typical Characteristics of GA-32*0 Series  (Fumed)

Product code

GA-3230

GA-3240

GA-3250

GA-3260

GA-3270

GA-3280

Appearance

Transparent

Hardness (Shorea)

30

40

50

60

70

80

William plasticity

140

180

210

240

280

310

Density (g/c)

1.08

1.11

1.14

1.17

1.20

1.22

Tensile strength (Mpa)

9

9.5

11

10.5

10.5

9

Elongation at break (%)

900

700

650

600

450

350

Tear strength (kN/m)

18

22

25

30

30

30
