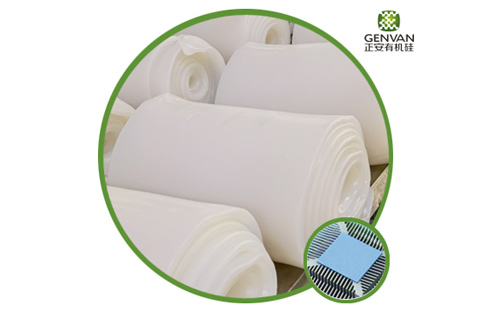

GA-96*0 series thermal conductivity silicone rubbers have good thermal conductive property, excellent heat transfer performance.
Features of Thermal Conductivity Silicone Rubber
- GA-96*0 Series Heat Cure Rubber
Feature: good thermal conductive property, good processability among thermally conductive rubbers
Heat Conductive Silicone Rubber Application: thermal conductive gasket, rubber strip, thermal conductive sheath, thermal conductive silicon cloth
Typical Characteristics
Product code | GA-9630 | GA-9640 | GA-9650 | GA-9660 | GA-9670 | GA-9680 | GA-9680B |
Appearance | white | black | |||||
William plasticity | 160 | 180 | 200 | 220 | 240 | 270 | 270 |
Hardness(ShoreA) | 30 | 40 | 50 | 60 | 70 | 76 | 79 |
Density(g/cm³) | 2.1 | 2.13 | 2.15 | 2.2 | 2.25 | 2.04 | 2.35 |
Tensile strength(Mpa) | 1.0 | 1.5 | 2.0 | 2.0 | 2.5 | 4.5 | 4.7 |
Elongation(%) | 800 | 750 | 700 | 600 | 500 | 80 | 130 |
Tear strength(KN/m) | 6 | 6 | 6 | 10 | 10 | 8.0 | 11.3 |
Coefficient of thermal | 0.8 | 0.8 | 0.8 | 0.9 | 0.9 | 0.8 | 0.9 |
-
